1.5 Ton Semi Electric Container Reach Pallet Battery Power Forklift Truck Lift Height 3 Meter 4 Meter 5.5 Meters AC Motor Hand Manual Walkie Drum Stacker

Basic Info.

Model NO.	CDD-A
Cab Location	Adjustable
Type	Powered Pallet Truck
Power	DC Motor
Load Capacity	1T - 5T
Fuel	Electric
Load center	500mm
Lift height	1600mm-5000mm
Condition	New
Certificate	CE and ISO
Transport Package	Wooden Box or Other
Specification	L1800mm*W800mm*H2200mm
Trademark	ANDY or OEM
Origin	Jiangsu China
HS Code	8427900000
Production Capacity	20000

Packaging & Delivery

Package Size1000.00cm * 1000.00cm * 1000.00cm Package Gross Weight1000.000kg

Product Description

Q1: How long is the warranty of your products? A:Equipment max provide 12 months or 2000 working hours warranty as standard ,whichever comes first.Q2:What payment terms do you accept? A:Our standard payment term is 30% in advance and 70% in balance by TT before delivery or original B/L copy.Q3:How long can I get my order finished? A:15-20 days for classic forklift ,pallet truck,stacker and attached, 5-10 days for spare parts.Q4:Can you customize the configuration/logo/lable/color according to our requirements? A:Yes.Q5:Do you accept small order? A:Yes,the MOQ is 1 unit for most of the products,for very small handing equipment,we can check case Product Application Technology Characteristics

1. With a rated load, it is easy to work on a 5% slope;
2. The stacker is compact, flexible, and has good maneuverability. It can also work efficiently and freely in a narrow space;
3. The handle has a turtle speed switch and the handle has an upright walking function;
4. With adjustable balance wheel, the stacker walks smoothly and there is no shaking on the left and right;
5. With good shock absorber effect, the balance wheel assembly is detachable as a whole, which is convenient for maintenance.

Technology Parameter

model	unit	CDD-A15
rated load	kg	1500
load center distance	c(mm)	500
wheel tread	y (mm)	1555
weight (with battery)	kg	460-573
wheel material		pu
front wheel size	(mm)	φ210*70
rear wheel size	(mm)	φ80*70
additional wheel size	(mm)	φ100*50
number of wheels(x=driving wheel)		1x+2/4
front wheel track	b10(mm)	886
rear wheel track	b11 (mm)	525
lifting height of fork above ground	h3 (mm)	1600/2000/2500/3000/3500
height of gantry is lowed	h15 (mm)	2090/1590/1840/2090/2340
minimum height of fork above ground	h13 (mm)	85
overall length	l1 (mm)	1791
fork size	s/e/l (mm)	60*170*1100
overall width	b1 (mm)	822
fork width	b5 (mm)	680
channel width(1000mm*1200mm tray)	ast (mm)	2305
radius of turning circle	wa (mm)	1431
driving speed,full load/no load	km/h	4/5
lifting speed, full load/no load	m/s	0.12/0.18
service brake		electromagnetic brake
driving motor power	kw	0.75 (dc)
lifting motor power	kw	2.2 (dc)
battery capacity	v/ah	24v/85ah
noise level according to DIN12053	db(a)	<70

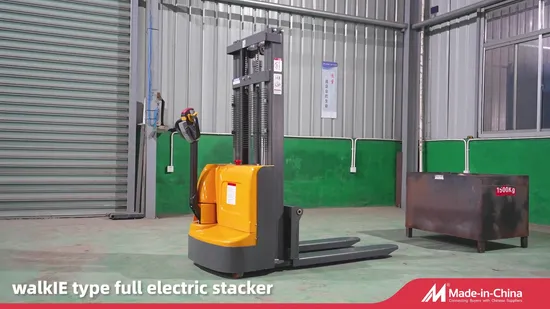

Product images
