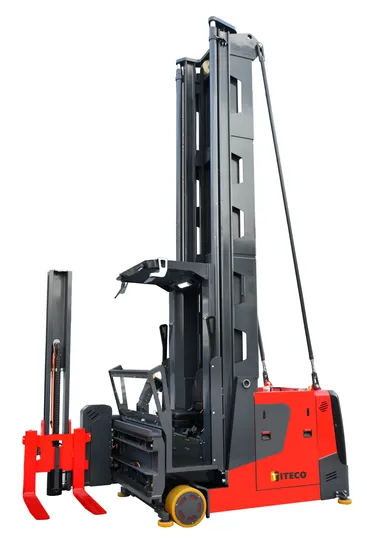

Electric Vna Forklift Very Narrow Aisle Articulated Battery

Basic Info.

Model NO.	MC15ss
Cab Location	Not Adjustable
Type	Electric Forklift
Power	AC Motor
Load Capacity	1T - 5T
Fuel	Electric
Load center	500mm
Lift height	3000-9000mm
Condition	New
Lifting Height	3000-9000mm
Width	1450mm
Fork Dimension	1000/125/50mm
Rated Load Capacity	1000kg
Turning Radius	1880mm
Transport Package	Nude Packing
Trademark	TITECO
Origin	China
HS Code	8428909090
Production Capacity	1000 PCS/Year

Packaging & Delivery

Package Size654.00cm * 443.00cm * 668.00cm Package Gross Weight2000.000kg

Product Description

PRODUCT DESCRIPTION

Model		MC10	MC10SQ	MC15	MC15SQ
Power type		Battery	Battery	Battery	Battery
Operation Type		Stand-on	Stand-on	Stand-on	Stand-on
Service weight (incl. battery)	kg	4260	4800	4690	5520
Rated capacity	kg	1000	1000	1500	1500
Load center	mm	500	500	600	600
Lift height	mm	3000	4500	3000	4500
Fork dimension	mm	1000/125/50	1000/125/50	1200/125/50	1200/125/50
Front overhang	mm	657	657	670	670
Turning radius	mm	1880	1880	1980	1980
Max. climbing ability		/	/	/	/
Fravelling speed Jaden/unladen	km/h	7.5/8	7.5/8	7.5/8	7.5/8
Lifting speed Jaden/unladen	mm/s	230/300	230/300	200/300	200/300
Lowering speedjaden/unladen	mm/s	310/310	310/310	340/340	340/340

APPLICATIONS
MC Series 1.0-1.5T 3-way pallet stacker (Stand-on Driving type) 3-way stacking function: forks can rotate 180° and do left-right side shift without body turning. The 3-way pallet stacker is the first choice of intensive storage, which is mainly used in logistics, medicine, food and low-temperature cold storage. 1. Stacking in ultra-narrow roadways and high shelf design; 2.Horizontal handling; 3.Load/unload cargos.
Main Features:
1.3-way pallet stacker forks can rotate 180°and do left-right side shift without body turning, with high strength mast design. Min. net channel: 1500mm; Max. lifting height: 9000m. The 3-way pallet stacker can improve space utlization and increase the storage capacity. 2.Advanced Curtis controller and more stable, safer whole-AC system for high efficency, energy conservation and environmental protection. 3.Maintenance-free whole-AC driving system for quick and accurate reaction. Maintenance-free motor, with long service life and low noise and low maintenance cost. 4.Standard electric power steering is safe and reliable, with easy and comfortable operation. 5.Large section mast structure design to ensure the rigidity of mast and improve loading performances, which is very suitable to high shelf storage. 6.Imported hydraulic parts for stable and reliable hydraulic system. 7.Side pull type battery for convenient charging and maintenance.

1	Gantry channel steel: imported from Germany, the gantry has its own shock absorption to reduce the vibration during lifting and lowering;
2	Maintenance-free AC drive motor;
3	Imported AC controller;
4	Danfoss or Eaton side shift and rotary motors;
5	Japan Tokai Rubber and Plastic Pipe; Tianjin Shimadzu Gear Oil Pump;
6	American AMP waterproof and dustproof plug-in, to effectively protect the line, greatly reduce electrical failures;
7	Japanese NOK seals; German SICK brand steering sensor switch;
8	Adopt H-shaped channel steel and central guide rail design to ensure the stability and rigidity when stacking at a high position;
9	High gantry video color display, guide wheel, soft cushion, drive wheel position display; battery side pull, battery replacement rack.
10	The above parameters and configurations are for reference only, the actual production data is mainly based on our technical non-standard evaluation form.
