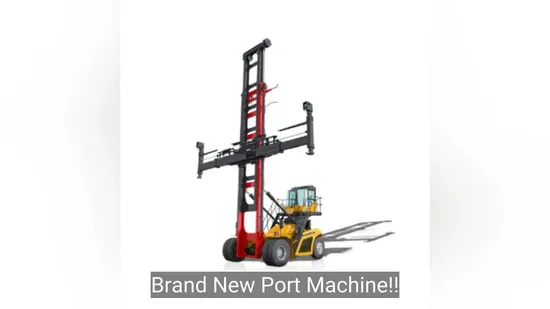

Sdcy90K6h1c 9t Empty Container Handler
- Overview
- Product Description
- Detailed Photos
- Company Profile
Basic Info.
| Model NO. | SDCY90K6H1C |
| Cab Location | Adjustable |
| Type | Diesel Forklift |
| Power | Diesel Engine |
| Load Capacity | 5T - 10T |
| Fuel | Diesel |
| Load center | >500mm |
| Lift height | >5000mm |
| Condition | New |
| Rated Power | 185 Kw |
| Max Torque | 1160nm |
| Overall Weight | 38.5t |
| Gradeability | 35% |
| Overall Length | 6900mm |
| Wheel Base | 4550mm |
| Load Centers | 1220mm |
| Overall Width | 6038mm |
| Min Turn Radius | 6000mm |
| Emission Standard | III |
| Rated Capacity | 9t |
| Min Ground Clearance | 320mm |
| Color | Yellow Red |
| Max Hoisting Speed | 600mm |
| Wheel Distance | 1140mm |
| Transport Package | Nude |
| Specification | 6900x6038x12315 |
| Trademark | N/M |
| Origin | China |
| HS Code | 8427109000 |
| Production Capacity | 5000units/Year |
Product Description
Dynamic Anti-rollover Protection Technology· Intelligent control technology is applied to detect the equipment's real-time working parameters and automatically adjust the operating status under dangerous conditions prevent rollover. It is highly intelligent, ensuring safety and care-free operation.
Extra High Mast Design Technology
· F-type mast is creatively developed to reduce shaking. It is curve and twist resisting and highly rigid, safe and reliable.
Patented Mast Clamping Alarm Technology
· An intelligent monitoring device will detect the blocking and send alarm. The main electronic control system can lock the dangerous operations to prevent further damage, comprehensively eliminating safety hazards.
Patented Spreader Horizontal Slew Technology
· Aligning and lifting container is made more convenient and quicker. It greatly decreases the friction between tire and floor, reduces fuel consumption and saves costs.
Efficient Control Technology
· The centralized joystick has inching control function. It can realize fine tuning to millimeter precision easily. All the attachments' motions are under proportional control, providing user-friendly operation experience. The machine also has multi-motion linkage design so that it can operate faster and more efficiently.
Hurdling Twin Container Spreader
· Hurdling and twin container spreaders are developed to meet customers' needs. It can vertically rotate ±4° to improve alignment efficiency.
Hydraulic Load Sensing System
· It can automatically adjust the pump displacement according to the load, realizing high precision flow control. The effect of energy saving and consumption reduction are remarkable.
Dynamic Power Matching Control System
· It can automatically recognize dynamic power according to load change and adjust engine speed accordingly. The output power automatically accommodates to load and work conditions, greatly reducing energy consumption.
Design to be Lighter
· The structure is optimized to make it lighter yet stronger.
LNG New Fuel Technology
· More economic and environmentally friendly
