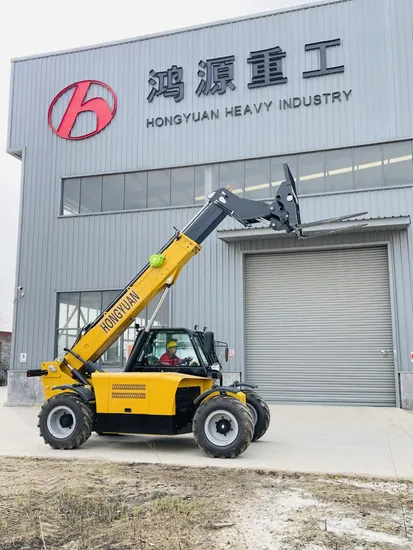

Telehandler Compact Loader

Capacities

Max. capacity

Kg

4000

Max. lifting height

mm

17550

Max. Reach

mm

13080

Breakout force with bucket

KN

≥70

Weight and dimensions

Overall length to carriage

mm

6970

Overall width

mm

2430

Overall height

mm

2550

Ground clearance

mm

420

Total width(the leg whole open)

mm

3800

Wheelbase

mm

3670

External turning radius (over tyres)

mm

≤4500

Forks length / width / section

mm

1200 x 125 x 50

Tyres type

Pneumatic

Standard Tyres

/

440/80-24

Unladen weight (with forks)

kg

13500

Transmission

Steering method

/

2 wheels/4 wheels/crab wheels

Driving method

4x4x4

Transmission type

/

Torque Converter

Number of gears (forward / reverse)

/

4/4

Max.speed

km/h

30

Service brake

/

Oil-immersed multi-discs braking on front & rear axles

Parking brake

/

Automatic parking brake

Engine

Model

/

DF Cummins 4BT3.9-C100

Rated power

kw/r/min

74/2200

Transmission

/

Euro 2

Hydraulic

Hydraulic pump type

Gear pump

Hydraulic flow / Pressure

106 l/min / 270 Bar

Tank capacities

Engine oil

7.50 l

Hydraulic oil

135 l

Fuel tank

140 l

DEF tank capacity

21.60 l

Performance

Lifting

s

18

Lowering

13

Extension

17

Retraction

16

Crowd

5

Dump

4

Controls

/

JSM
