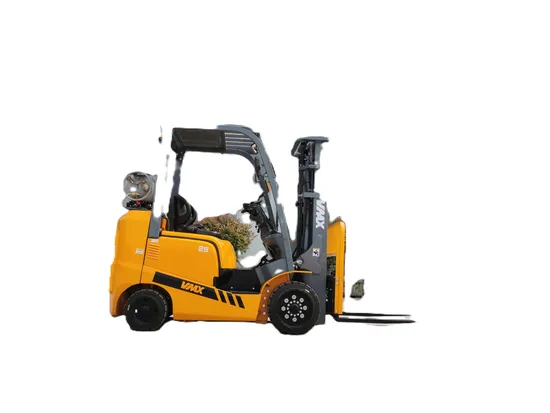

Vmax Best Price LPG Gas Forklift Small Wheelbase Type 2ton 2.5t Reliable EPA EUR5 Engine Triplex Mast Side Shifter Propane Fork Lift Solid Tire

Overview Package Size254.00cm * 115.00cm * 215.00cm Package Gross Weight3620.000kg Gasoline/LPG forklift 1. The engine i

Send inquiry

Overview
Product Description

Overview

Basic Info.

Model NO.	FG25L
Type	LPG & Gasoline Forklift
Power	Gasoline Engine
Load Capacity	1T - 5T
Fuel	Gasoline
Load center	500mm
Lift height	3000~5000mm
Condition	New
Model	Fg20L/Fg25L
Mast	2 Stage/3 Stage
Feature	Easy Operation Safety Convenience
Color	Customer Demanded
Advantage	Low Consumption High Efficiency
Power Souce	LPG Engine
Transport Package	Standard
Specification	SMALL
Trademark	VMAX
Origin	China
HS Code	8427209000
Production Capacity	10000PCS/Month

Packaging & Delivery

Package Size254.00cm * 115.00cm * 215.00cm Package Gross Weight3620.000kg

Product Description

Gasoline/LPG forklift 1. The engine is smaller than diesel forklifts and has a relatively light weight. 2. Due to the use of gasoline fuel, the output power is much greater than that of electric forklifts. 3. The noise and vibration generated during work operations are relatively small, providing a good driving experience for drivers. 4. Due to sufficient combustion and low exhaust emissions, it is relatively environmentally friendly, so some tobacco and food factories use it more frequently. 5. Some urban areas have strict emission requirements, and diesel forklifts with excessive emissions are prohibited from entering, while gasoline forklifts can enter

Product Description

Item	General	Basic Model			Unit	FG20(FG20L)	FG25(FG25L)	FG30(FG30L)	FG35(FG35L)
1		Power type				Gasoline/LPG	Gasoline/LPG	Gasoline/LPG	Gasoline/LPG
2		Rated capacity			Kg	2000	2500	3000	3500
3		Load centre			mm	500	500	500
4	Characteristic&Dimension	Lift height			mm	3000		3000
5		Free lift height			mm	160		165	170
6		Fork size		LxWxT	mm	1070x122x40		1070x125x45	1070x125x50
7		Fork regulating range		Min./Max.	mm	250/1040		250/1100	260/1100
8		Mast tilt angle		F/R	Deg	6/12		6/12	6/12
9		Front overhang			mm	460		485	505
10		Rear overhang			mm	460	495	520	585
11		Min. ground clearance(Bottom of mast)			mm	125		140
12		Overall dimensions		Length to face of fork (without fork)	mm	2510	2545	2685	2750
13				Overall width	mm	1150		1210	1210
14				Mast lowered height	mm	2010		2075	2150
15				Mast extended height (with backrest)	mm	4020		4100	4160
16				Overhead guard height	mm	2145		2170	2170
17		Turning radius(outside)			mm	2180	2250	2430	2450
18		Min. right angle stacking aisle width (add load length and clearance)			mm	1940	2010	2140	2160
19	Performance	Speed		Travel(Unladen)	Km/h	19		19
20				Lifting(Laden)	mm/s	490		390	360
21				Lowering(Laden)	mm/s	450		450
22		Max. Drawbar pull(Laden/unladen)			KN	17/15		18/16	19/17
23		Max. Gradeability(Laden)			%	20		20	18
24	Chassis	Tyre		Front	mm	7.00-12-12 PR	7.00-12-12 PR	28*9-15-14 PR
25				Rear	mm	6.00-9-10 PR	6.00-9-10 PR	6.50-10-10 PR
26		Tread		Front	mm	970		1000
27				Rear	mm	980		980
28		Wheelbase			mm	1600		1700
29		Fuel tank capacity			L	60		70
30	Weight	Self weight			kg	3450	3620	4310	4750
31		Weight Distribution	Laden	Front Axle	kg	4690	5260	6290	7090
32				Rear Axle	kg	760	860	1020	1160
33			Unladen	Front Axle	kg	1550	1630	1940	2140
34				Rear Axle	kg	1900	1990	2370	2610
35	Battery	Battery	Voltage/Capacity		V/Ah	12/60		12/60
36	Transmission	Transmission	Manufacture			China		China
37			Type			Powershift		Powershift
38			Stage	F/R		1/1		1/1
39		Operating pressure(For attachments)			Mpa	17.5		17.5
